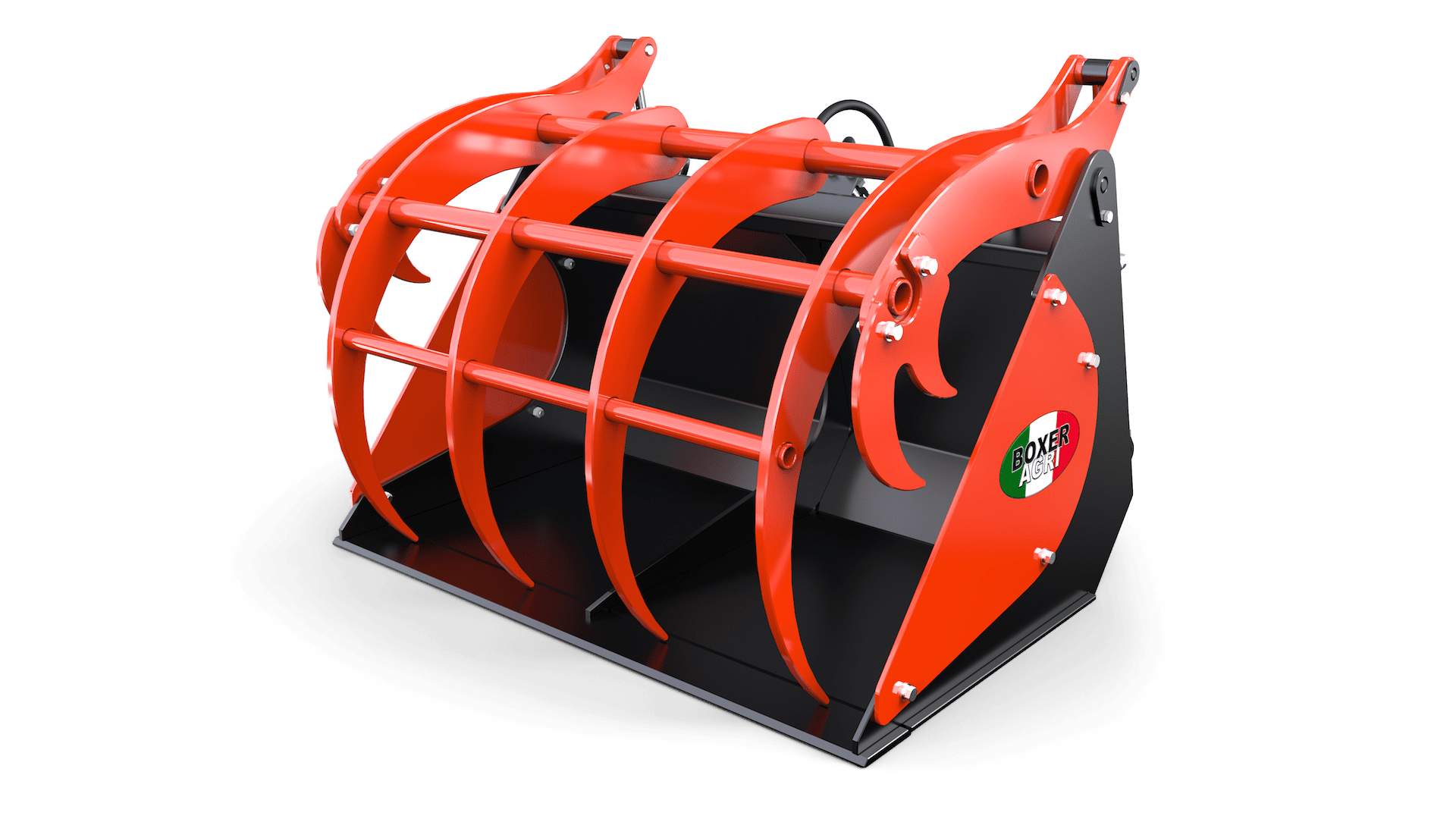

Boxer PB silage grab

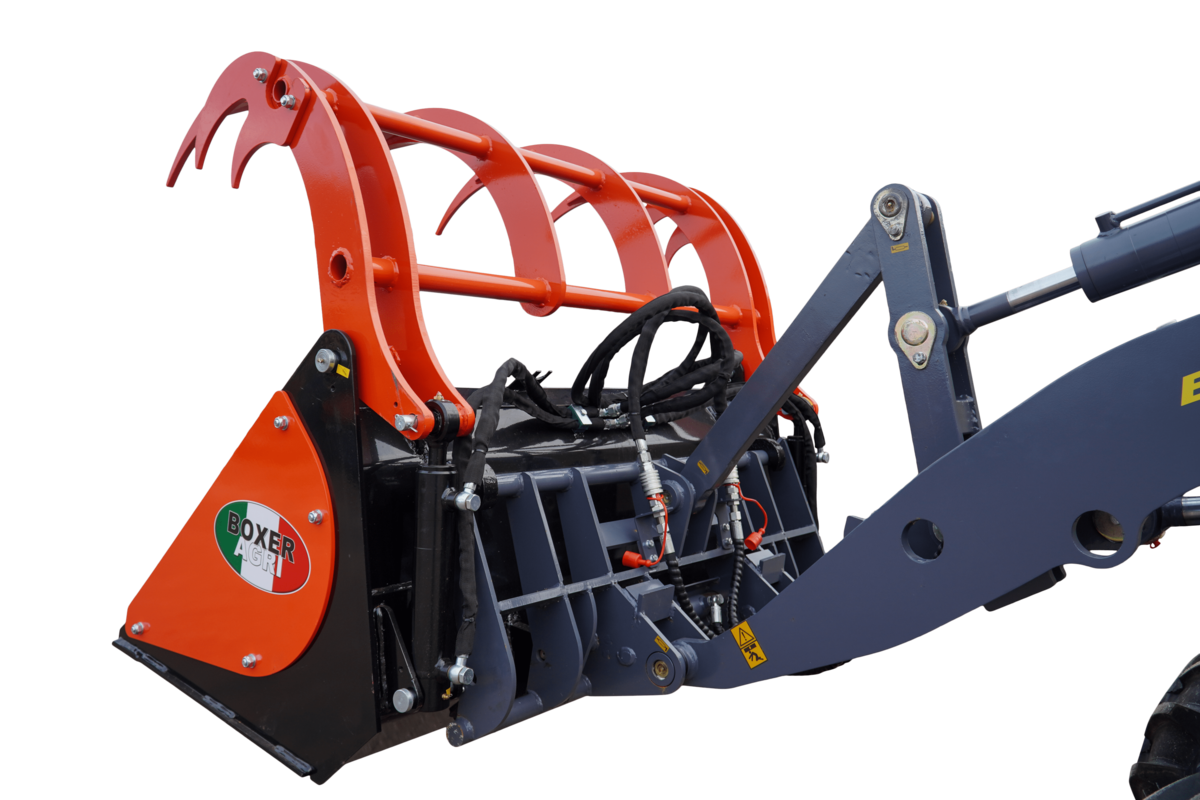

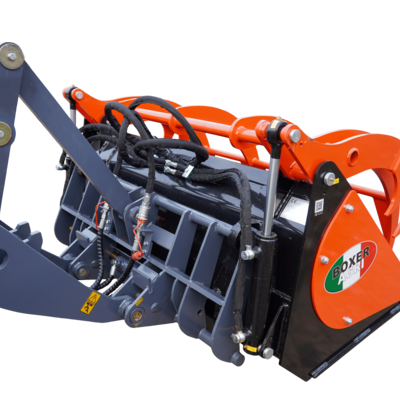

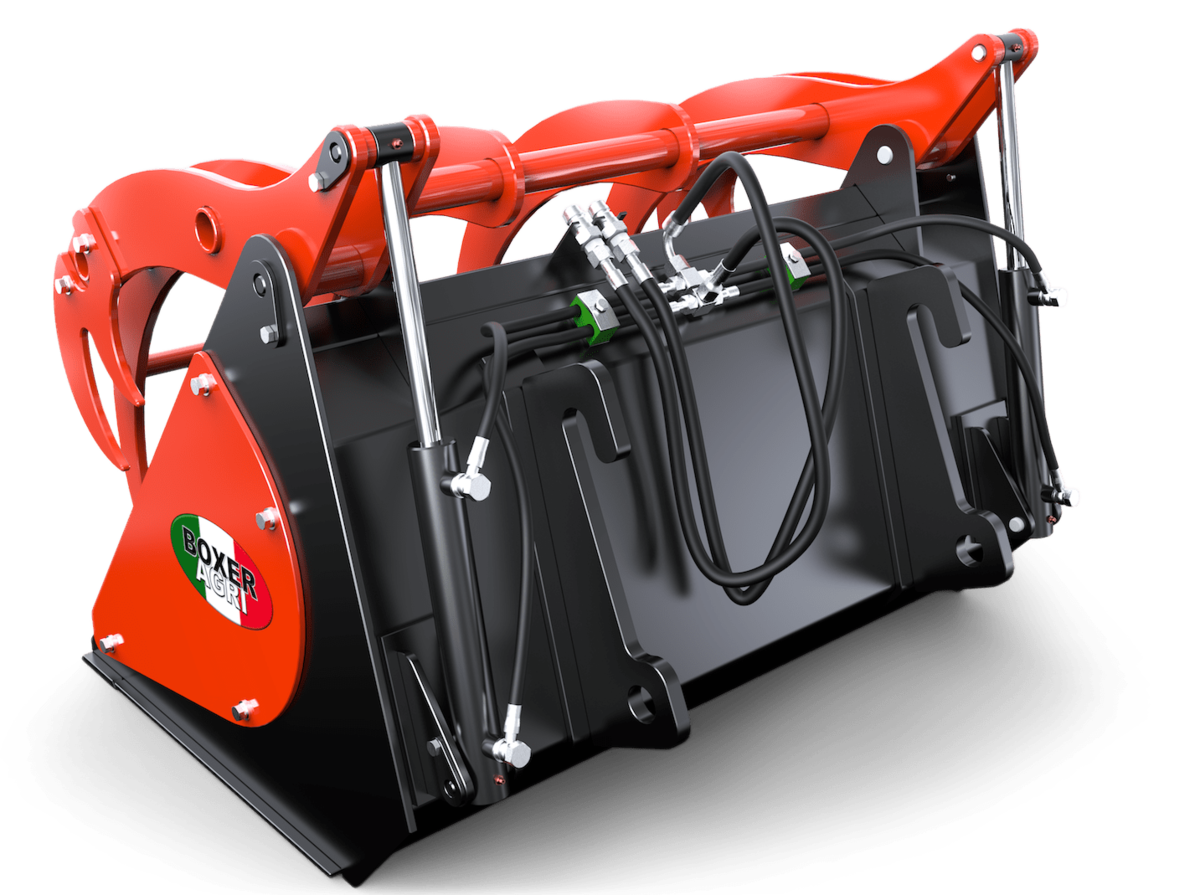

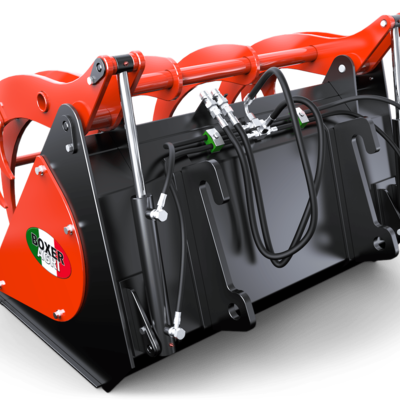

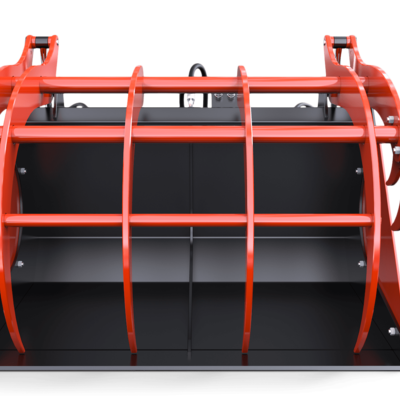

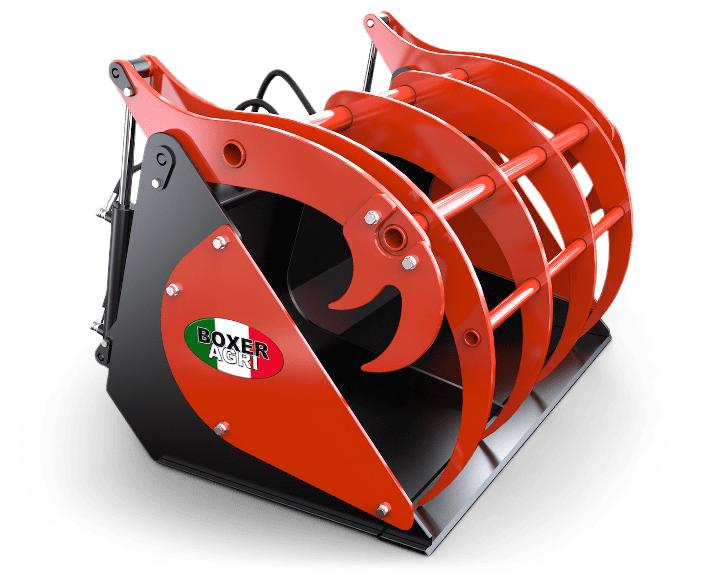

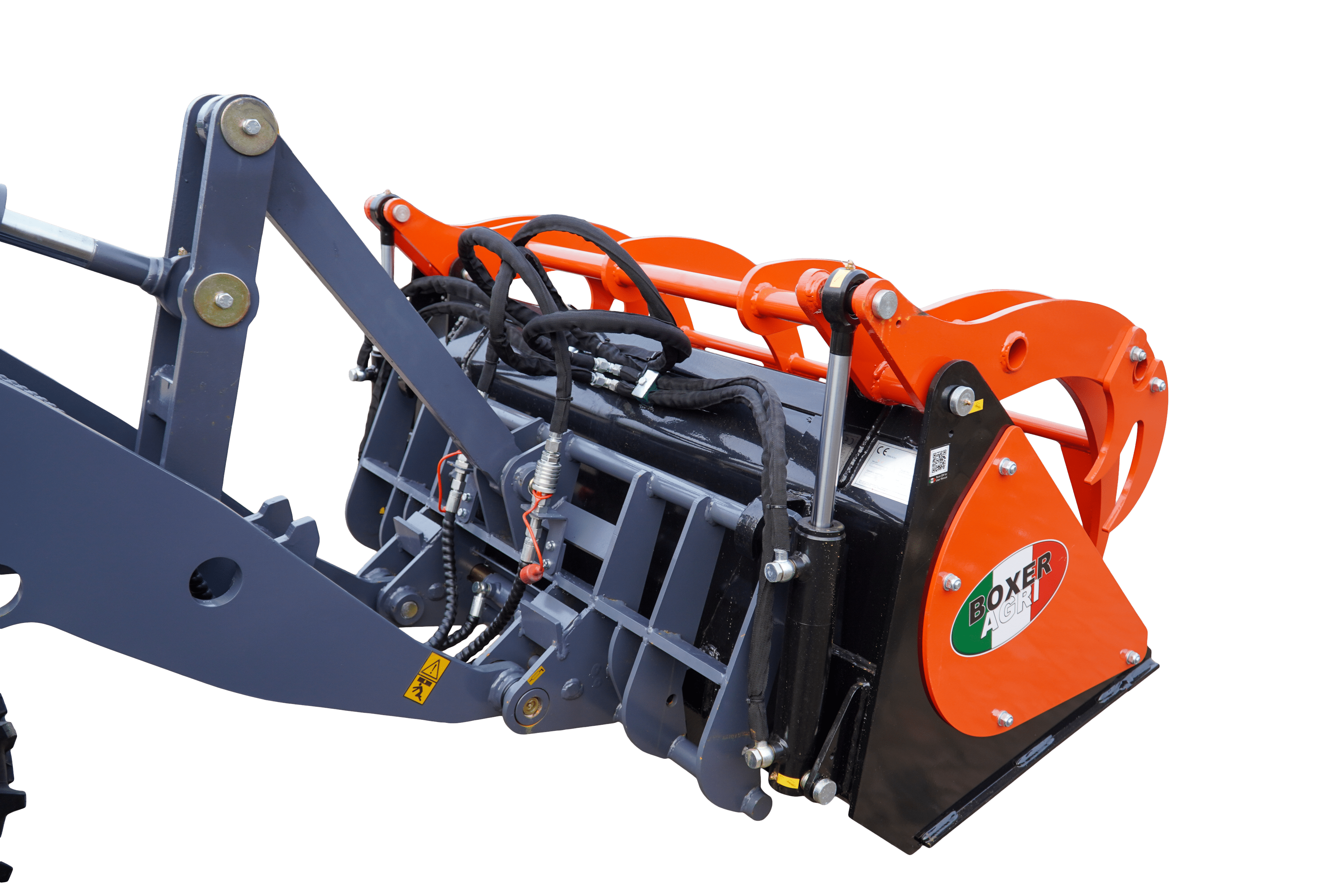

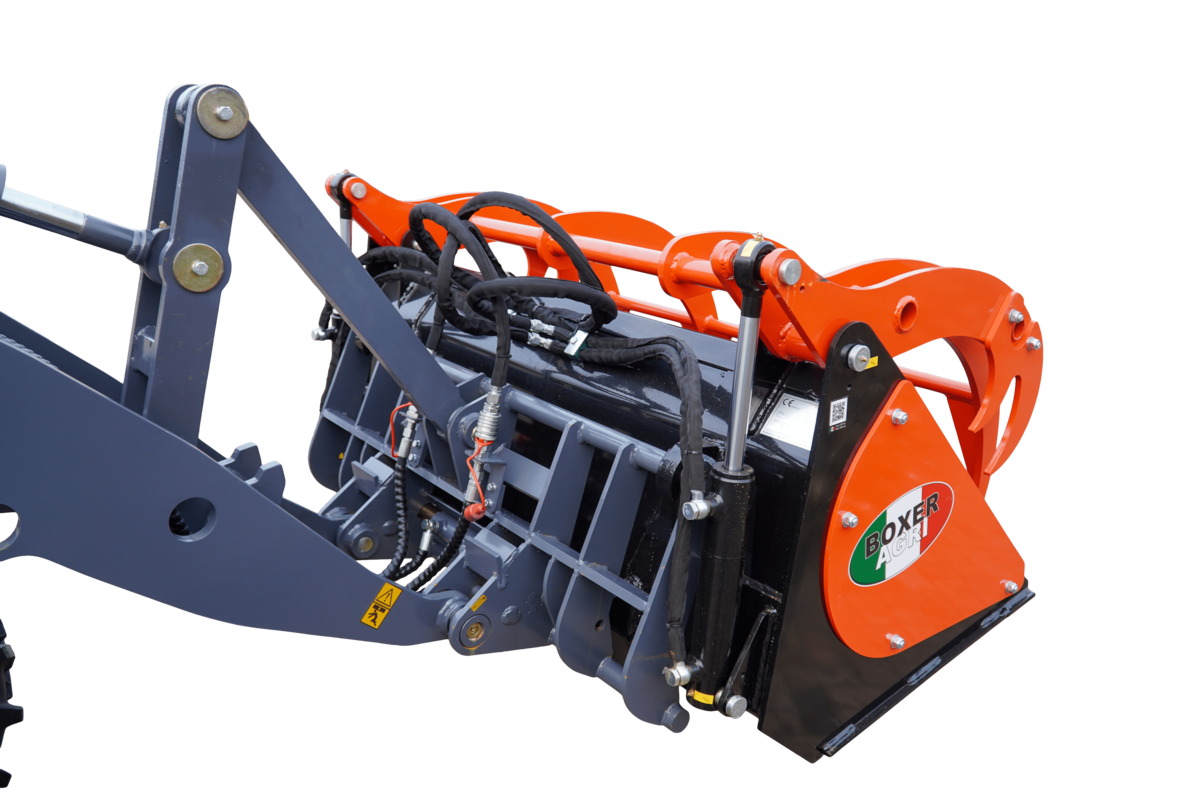

The pelican bucket is suitable for loading and moving loose materials such as manure, silage and other agricultural products. The bucket is equipped with a hydraulically driven top clamp, which holds the material securely during transport.

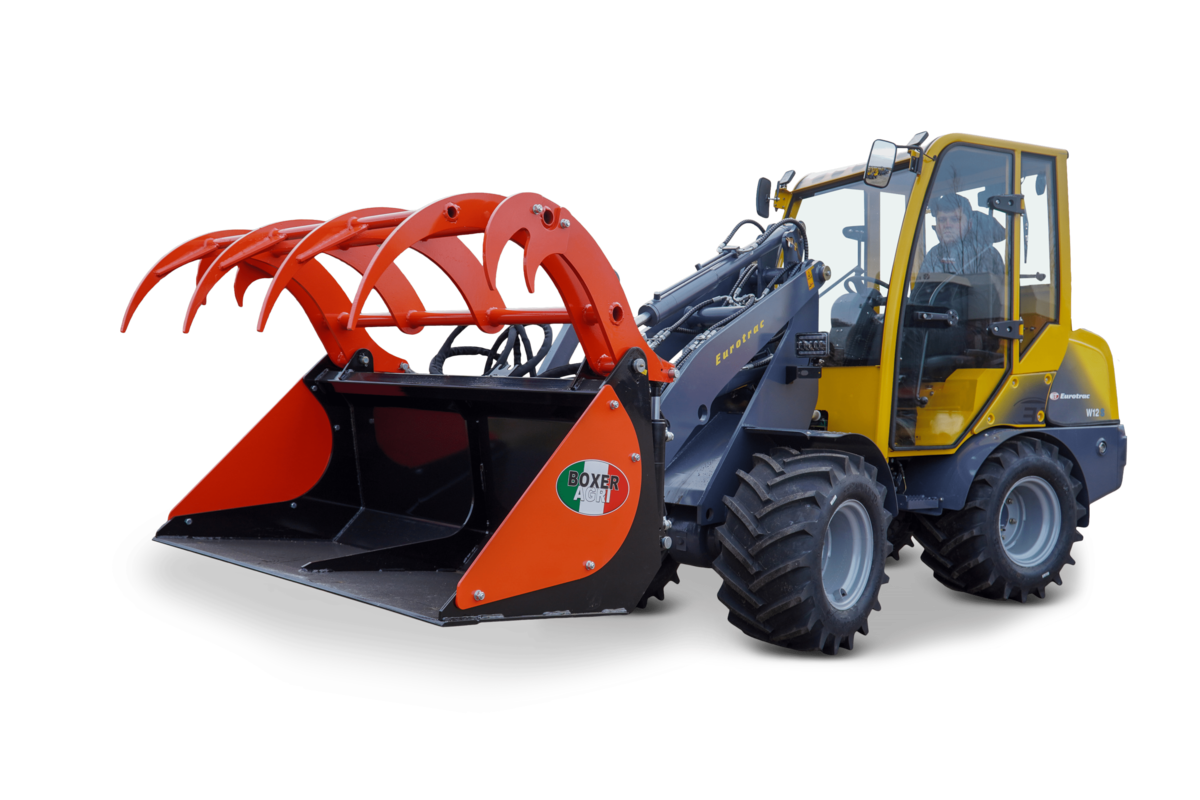

Available with W or Euro connection and available in widths up to 240 cm. Suitable for use on compact wheel loaders within agricultural and earthmoving operations.
Downloads
Specifications
| PB 110W | |
|---|---|
| (A) Working width | 110 |
| Bin content | 440 L |
| Coupling type | W-snelwissel |
| Number of teeth | 4 |
| Weight | 285 |
| PB 120W | |
|---|---|
| (A) Working width | 120 |
| Bin content | 485 L |
| Coupling type | W-snelwissel |
| Number of teeth | 4 |
| Weight | 296 |
| PB 140W | |
|---|---|
| (A) Working width | 140 |
| Bin content | 570 L |
| Coupling type | W-snelwissel |
| Number of teeth | 4 |
| Weight | 317 |
| PB 140E | |
|---|---|
| (A) Working width | 140 |
| Bin content | 570 L |
| Coupling type | Euro snelwissel |
| Number of teeth | 4 |
| Weight | 317 |
| PB 160W | |
|---|---|
| (A) Working width | 160 |
| Bin content | 660 L |
| Coupling type | W-snelwissel |
| Number of teeth | 5 |
| Weight | 348 |
| PB 160E | |
|---|---|
| (A) Working width | 160 |
| Bin content | 660 L |
| Coupling type | Euro snelwissel |
| Number of teeth | 5 |
| Weight | 348 |
| PB 200E | |
|---|---|
| (A) Working width | 200 |
| Bin content | 840 L |
| Coupling type | Euro snelwissel |
| Number of teeth | 6 |
| Weight | 440 |
| PB 220E | |
|---|---|
| (A) Working width | 220 |
| Bin content | 920 L |
| Coupling type | Euro snelwissel |
| Number of teeth | 7 |
| Weight | 473 |
| PB 240E | |
|---|---|
| (A) Working width | 240 |
| Bin content | 1000 L |
| Coupling type | Euro snelwissel |
| Number of teeth | 7 |
| Weight | 495 |
| (A) Working width | Bin content | Coupling type | Number of teeth | Weight | |
|---|---|---|---|---|---|
| PB 110W | 110 | 440 L | W-snelwissel | 4 | 285 |
| PB 120W | 120 | 485 L | W-snelwissel | 4 | 296 |
| PB 140W | 140 | 570 L | W-snelwissel | 4 | 317 |
| PB 140E | 140 | 570 L | Euro snelwissel | 4 | 317 |
| PB 160W | 160 | 660 L | W-snelwissel | 5 | 348 |
| PB 160E | 160 | 660 L | Euro snelwissel | 5 | 348 |
| PB 200E | 200 | 840 L | Euro snelwissel | 6 | 440 |
| PB 220E | 220 | 920 L | Euro snelwissel | 7 | 473 |
| PB 240E | 240 | 1000 L | Euro snelwissel | 7 | 495 |
